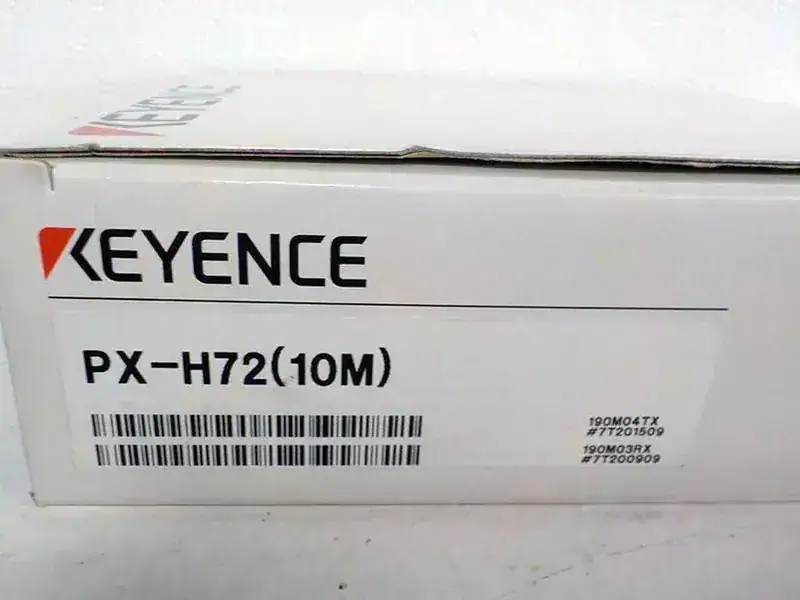

Tête de capteur transmissive KEYENCE PX-H72

Name: Tête de capteur transmissive KEYENCE PX-H72
SKU: ENLCD0000571
Price: 354 USD
Availability: InStock

Inventaire:

SKU:{{ product.sku }}

maquette: {{ product.model }}

poids: {{ product.weight }} kg

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

quantité:

détails du produit

PX-H72 Specification

Modèle		PX-H72^*1
Type		M12 Thrubeam Standard
Light source LED		Infrared LED (Wavelength：870 nm)
Detecting distance	TURBO	10 m 32.8′
	SUPER	15 m 49.2′
	ULTRA	30 m 98.4′
	MEGA	40 m 131.2′
Detectable object		ø7.5 mm ø0.30″ Opaque materials
Spot diameter		―
Environmental resistance	Enclosure rating	IEC: IP68/JEM: IP68g/NEMA: 4X, 6P, 13/DIN: IP69K
	Ambient light	Incandescent lamp: 20,000 lux max., Sunlight: 30,000 lux max.
	Ambient temperature	-10 to +55 °C 14 to 131 °F (No freezing)
	Humidité relative	35 to 85 % RH (No condensation)
	Résistance aux vibrations	10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Case material		Housing ：SUS303 (Plastic parts：PMP, POM) Lens ：BK7
Accessories		Screw nut (SUS303) x 4, toothed washer (SUS304) x 2
Poids		Approx. 90 g (Including cable)
