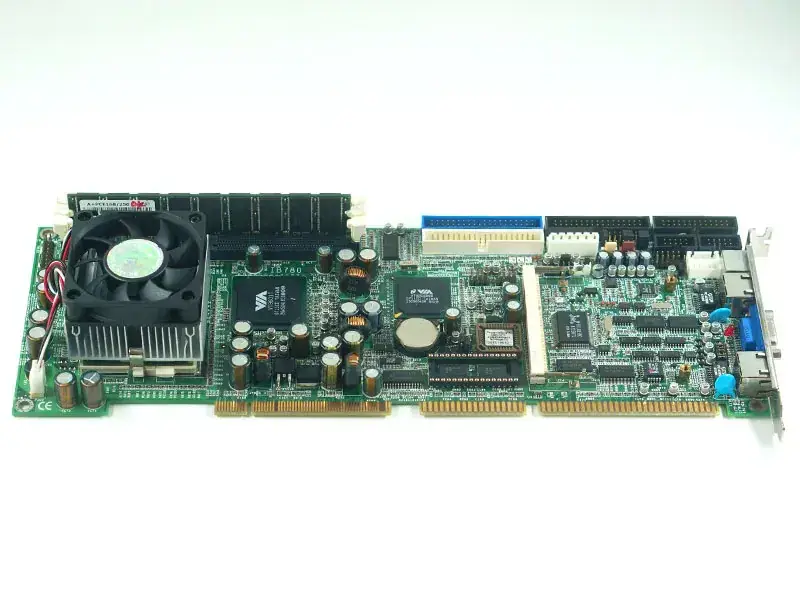

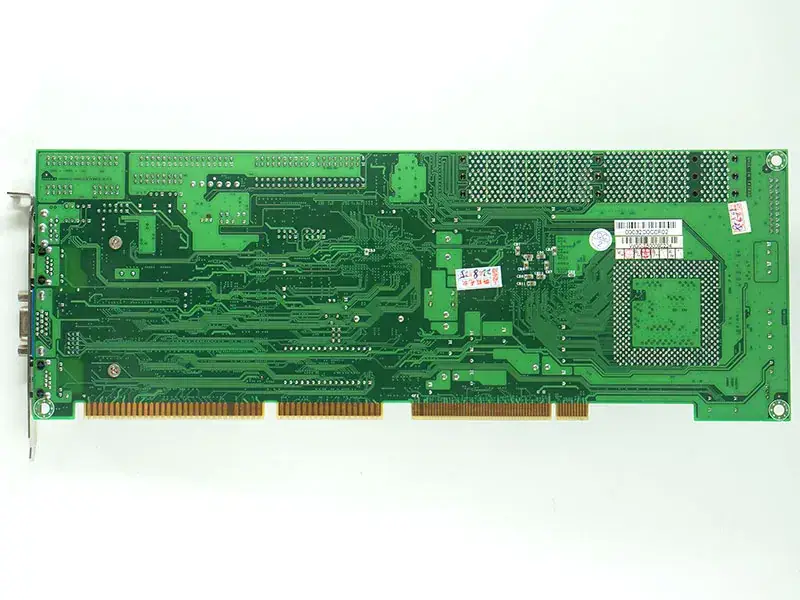

Ibase IB780 IB-780 Industrial Motherboard with CPU, RAM and FAN

Spécifications de la carte mère

Caractéristiques

1- Supports Pentium® III / Celeron® processors Up to 1.4GHz, 66/100/133MHz FSB
2- SDR DIMM x 3, Max. 1.5GB
3- Integrated VGA, shared memory
4- Integrated 10/100 BaseT Ethernet
5- 4 x USB 1.1, ISA High Drive, Watchdog timer
6- DiskOnChip®, 1 x MicroPCI socket

Product description

Système
UNITÉ CENTRALE

Socket 370 for Pentium® III / Celeron®, up to 1.4GHz

Mémoire du système

SDR DIMM x 3, Max. 1.5GB

Système Chipset

VIA Apollo PLE133T + VT8601T + VT82C686B, 66/100/133MHz FSB

BIOS Award 2Mbit

Minuterie chien de garde 16 levels

SSD DiskOnChip®

H/W Monitor Yes

Fente d'expansion One MicroPCI socket

Graphique
VGA Controller

VIA VT8601T integrated

VGA Memory

Shared memory, Max. 8MB

LCD Interface

via optional MicroPCI card

Ethernet
LAN Controller

Realtek 8139C LAN, 10/100Mbps
Optional 2nd LAN via MicroPCI

Connecteur

2 RJ-45 on board

Multi I/O
Jeu de puces
VIA VT82C686B built-in
2x IDE (UDMA33/66/100), 1x FDD, 1x KB, 1x Mouse,
1x RS-232, 1x RS-232/422/485, 1x LPT

USB

Pin header for 4 ports (USB 1.1)

Audio

Built-in audio + AC97 codec

Autres IrDA

Mécanique et environnement
Dimensions

338mm x 122mm (13.31“ x 4.8“)

Max. Power Requirement
+5V: 15A
+/- 12V: 0.5A

OperatingTemperature 0°C~60°C (32°F~140°F)
StorageTemperature -20°C~80°C (-68°F~176°F)
Humidité relative 10%~90% (non-condensing)
