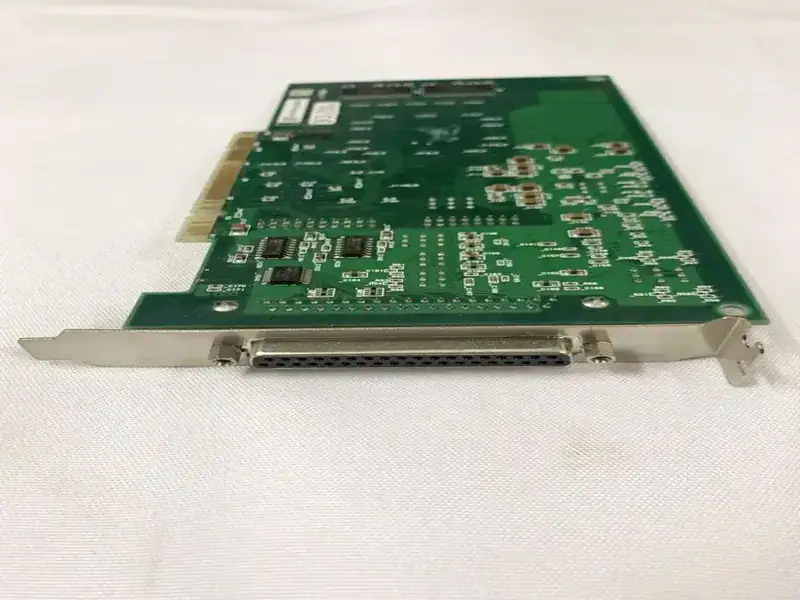

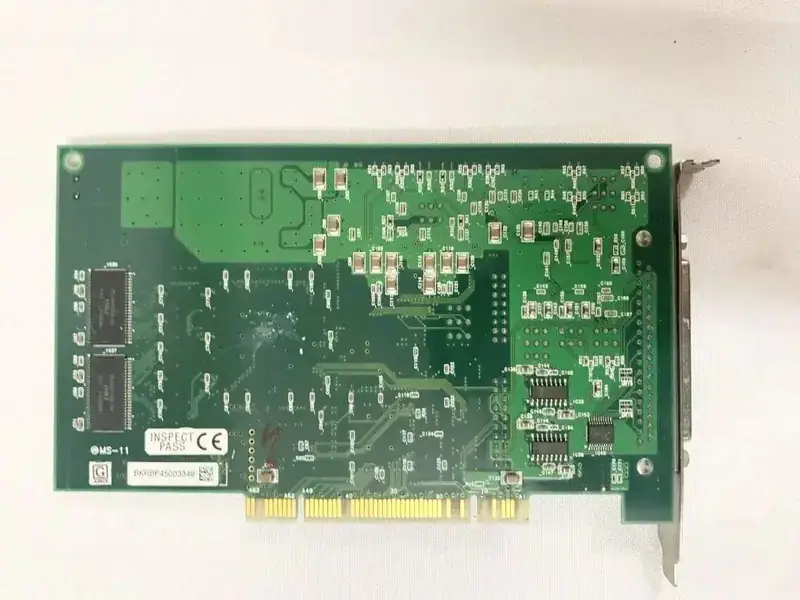

Carte DAQ Contec AD16-16U(PCI)EV

Name: Carte DAQ Contec AD16-16U(PCI)EV
SKU: ENLCD0036247
Price: 757 USD
Availability: InStock

Inventaire:

SKU:{{ product.sku }}

maquette: {{ product.model }}

poids: {{ product.weight }} kg

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

quantité:

détails du produit

Caractéristiques

Série	Analog E(Intelligent)
Spécification du bus	PCI
Taille	Short Size
Connecteur utilisé	D-SUB 37-pin (Female); 2x Pin header 16-pin (Male)

Input Channels	Single-ended 16-ch (Differential 8-ch)
Input Range	±10V; ±5V; 0 to 10V; 0 to 5V
ADC Resolution	16-bit
Sampling Rate	1μsec/ch (max.)
Input Buffer Memory	16M Word
Output Channels	1-ch
Output Range	±10V; 0 to 10V
DAC Resolution	16-bit
Update rate	10μsec (max.)
Output Buffer Memory	–

Input Channels	4-ch
Output Channels	4-ch
Bi-directional I/O Channels	–
Response Time (Input)	200nsec (max.)
Response Time (Output)	200nsec (max.)
Operating Voltage (Input)	5VDC-TTL
Operating Voltage (Output)	5VDC-TTL
Input Circuit	Non-isolated TTL level input (Positive logic)
Output Circuit	Non-isolated TTL level output (Positive logic)
Built-in Power Supply	–
