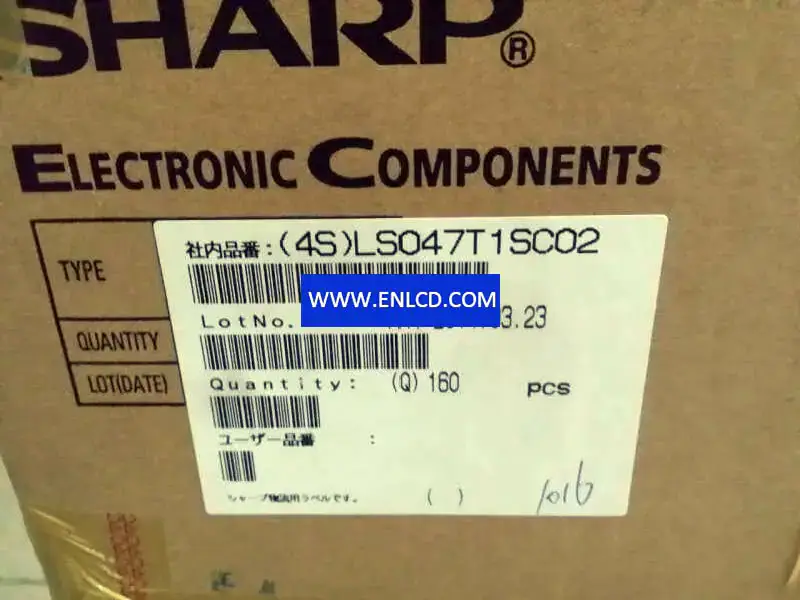

LS047T1SC02 SHARP LCD panel replacement for Mobile Phone

Panel Brand：SHARP
Panel Size：4.7 inch
Resolution：1080(RGB)×1920 , FHD
Display Area：57.996(W)×103.104(H) mm
Outline Size：60.4(W)×112.2(H)×1.48(D) mm
Brightness：470 cd/m2 (Typ.)
Viewing Angle：-
Best View on：Symmetry
Display Colors：16.7M71%(CIE1931)
Frequency： 60Hz
Weight：19.0g
Panel Model：LS047T1SC02
Panel Type：CG-Silicon , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：-
Surface：-
Contrast Ratio：1000:1 (Typ.) (TM)
Display Mode： New Mode2, Normally Black, Transmissive
Response Time：35 (Max.)(Tr+Td)
Lamp Type： 2 strings WLED, Without Driver
Touch Screen：Without
Application： Mobile Phone,
Signal Interface： MIPI (4 data lanes), 31 pins , Connector
Input Voltage： 5.0/-5.0/1.8V (Typ.)(AVDD/AVEE-/IOVCC)
Environment： Operating Temp.: -20 ~ 60 °C ;Storage Temp.: -30 ~ 70 °C
