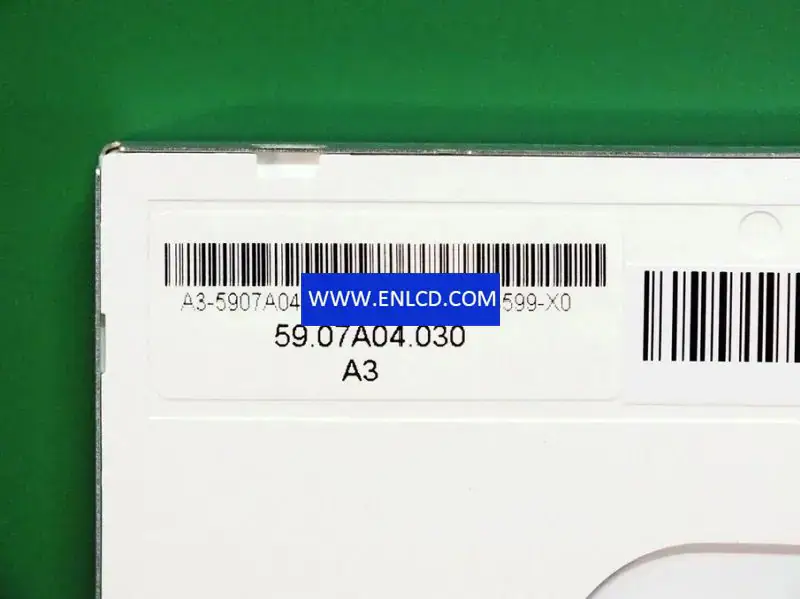

AUO A070FW03 VB LCD panel replacement

Panel Brand：AUO
Panel Model：A070FW03 VB
Panel Size：7.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：480(RGB)×234
Pixel Format：RGB Vertical Stripe
Display Area：154.08(W)×86.58(H) mm
Bezel Opening：156.08(W)×88.58(H) mm
Outline Size：164.9(W)×100(H)×6(D) mm
Surface：Antiglare, Hard coating (3H)
Brightness：250 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
Viewing Angle：65/65/40/65 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：4/12 (Typ.)(Tr/Td)
Display Colors：Full color 48%(CIE1931)
Lamp Type：3S6PWLED, 10K hours, Without Driver
Frequency：-
Touch Screen：Without
Panel Weight： 125g (Typ.)
Application： Portable DVD Player, Video Door Phone, Digital Photo Frame,
Signal Interface： TFT Specific Analog RGB, 26 pins, FPC
Input Voltage：3.3/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
Environment：Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C
