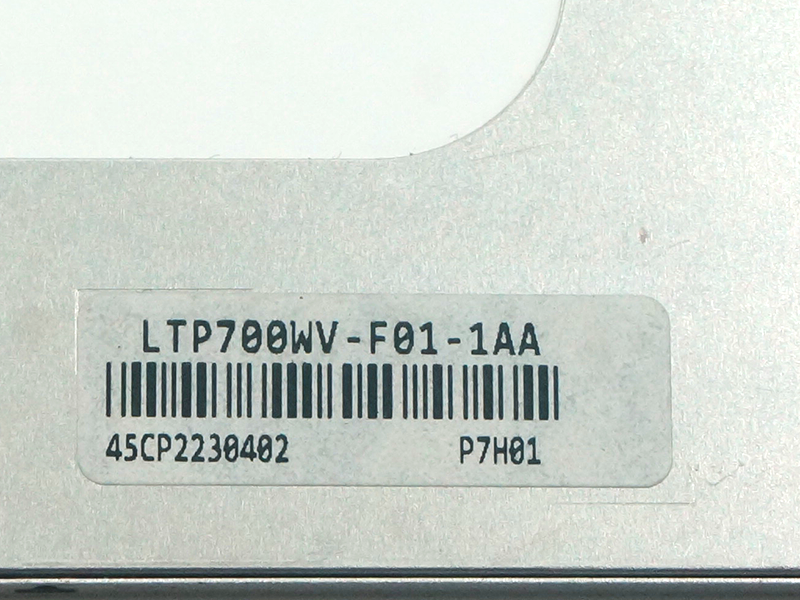

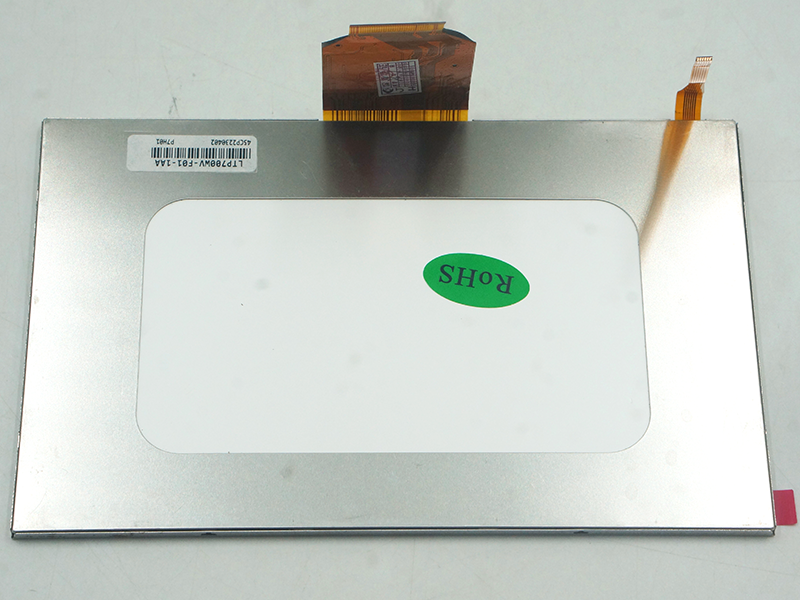

| Model: | LTP700WV-F01 |
| Brand: | Samsung |
| Diagonal Size: | 7 inch |
| Resolution: | 800 × 480 (WVGA, 133 PPI) |
| Pixel Format: | RGB Horizontal Stripe |
| Panel Type: | a-Si TFT-LCD, LCM |
| Display Mode: | TN, Normally White, TMR |
| Brightness: | 350 cd/m² (Typ.) |
| Contrast Ratio: | 300:1 (Typ.) (TM) |
| Viewing Angle: | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Best Viewing Direction: | 6 o'clock |
| Response Time: | 22.7 (Typ.)(Tr+Td) ms |
| Display Colors: | 16.7M 50% NTSC |
| Backlight: | 8S3P WLED, Without Driver |
| Refresh Rate: | 60 Hz |
| Interface: | Parallel RGB (1 ch, 8-bit), 40 pins FPC |
| Touch Panel: | Without |
| Active Area: | 152.4 × 91.44 mm |
| Outline Dimensions: | 163.2 × 104 × 3.6 mm |
| Weight: | 105 g (Typ.) |
| Power Supply: | 3.3V (Typ.) |
| Operating Temperature: | -20 ~ 60 °C |
| Storage Temperature: | -30 ~ 70 °C |
| Application: | Digital Photo Frame, Portable DVD Player |
| LCD Panel Specs | |
| Diagonal Size | 7-9.9" |
| Resolution | 800-1279 px (WVGA/SVGA/XGA) |
| Interface | Parallel RGB / TTL |
| Pin Count | 31-40 |
| Application | Camera & Photo |
| Panel Technology | a-Si TFT-LCD |
| Display Mode | TN |
| Touch Panel | Without touch |
| Brightness | 300-499 nits |
| Backlight | LED |
| Operating Temp | Extended (-20 °C) |
