Brand：NEC

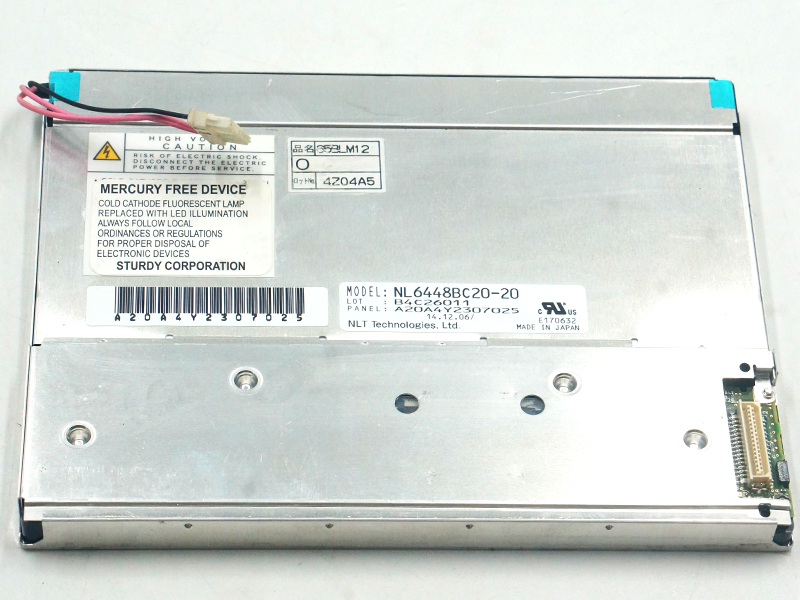

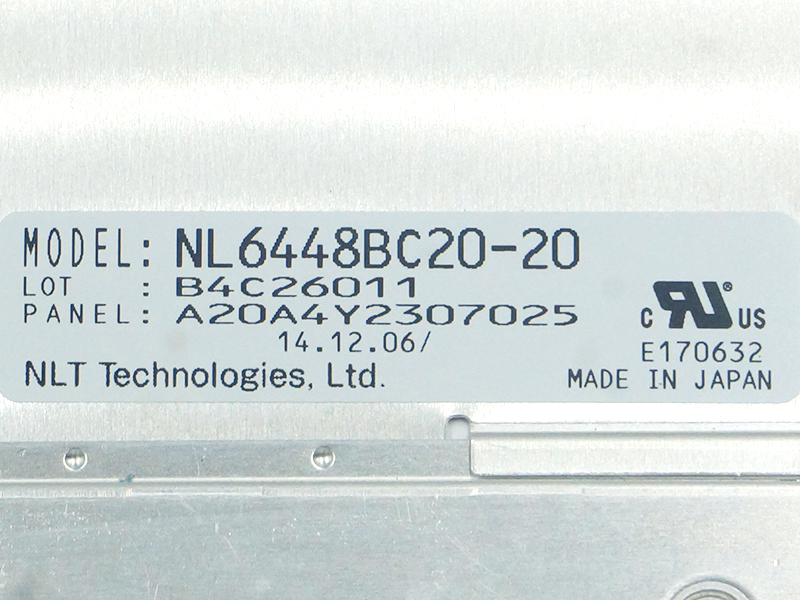

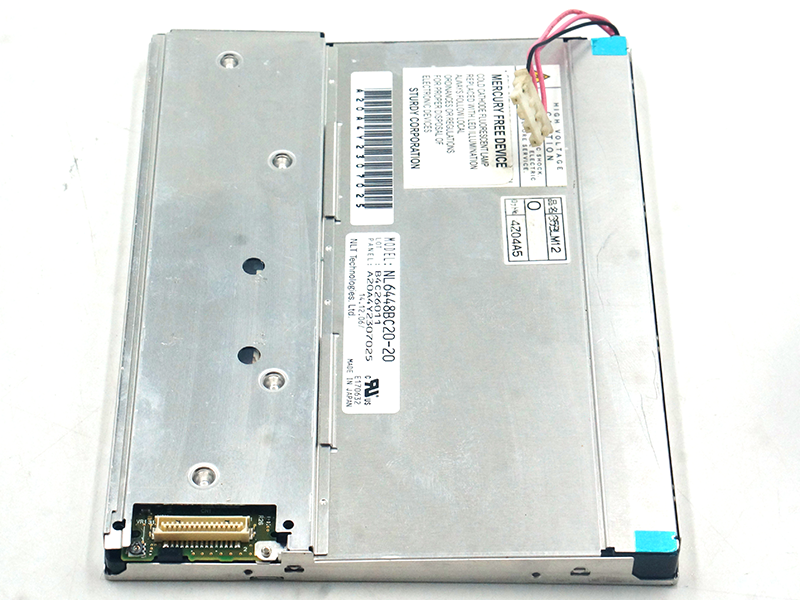

Model：NL6448BC20-20
Diagonal Size：6.5 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：640(RGB)×480[VGA]
Configuration：RGB Vertical Stripe
Active Area：132.48(H)×99.36(V) mm
Outline Dim.：153(H)×118(V)×11(D) mm
Bezel Area：135.9(H)×102.8(V) mm
Treatment：Clear, Hard coating (2H), Antireflection
Luminance：650 cd/m2 (Typ.)
Contrast Ratio：600:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：6/19 (Typ.)(Tr/Td)
Viewing Angle：80/80/80/60 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 40%(CIE1931)
Light Source：CCFL[2 pcs], 50K hours, W/O Driver
Weight： 205/215g (Typ./Max.)
Designed For： Industrial Application,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 31 pinsCMOS (1 ch, 6-bit), Connector
Power Supply：3.3/5.0V (Typ.)(VCC)
Environment： Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s2)
We use the following logistics services to deliver your order:
Yunexpress DDP: All customs duties and taxes are included. Delivery takes 6-12 working days.
DHL, UPS, FedEx: Delivery takes 2-4 working days.
Product condition: Brand New We can provide customized testing video upon request.
