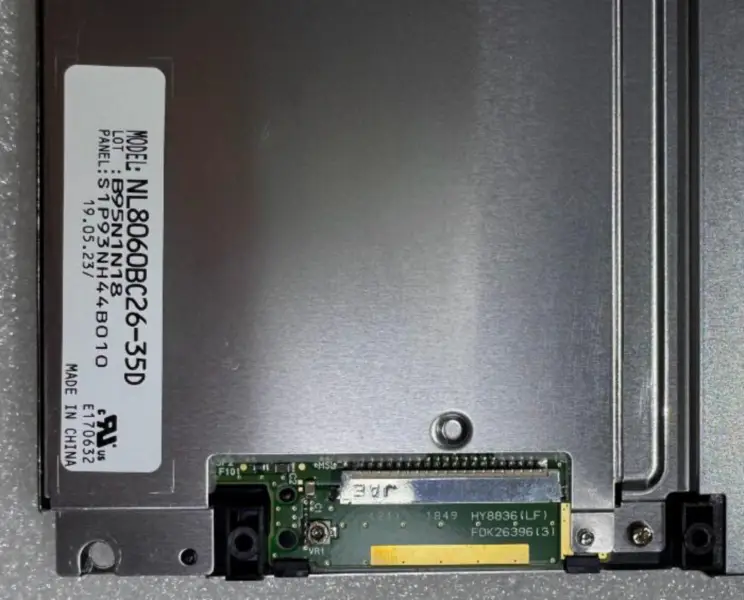

NL8060BC26-35D NLT LCD panel replacement for Industrial Application

Panel Brand：NEC
Panel Size：10.4 inch
Resolution：800(RGB)×600 , SVGA
Display Area：211.2(W)×158.4(H) mm
Outline Size：243(W)×185.1(H)×11(D) mm
Brightness：400 cd/m2 (Typ.)
Viewing Angle：80/80/80/80 (Typ.)(CR≥10)
Best View on：6 o’clock
Display Colors：262K/16.7M40%(CIE1931)
Frequency： 60Hz
Weight：475/500g (Typ./Max.)
Panel Model：NL8060BC26-35D
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：215.4(W)×161.8(H) mm
Surface：Antiglare, Hard coating (3H)
Contrast Ratio：900:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：3/15 (Typ.)(Tr/Td)
Lamp Type： 3 strings WLED , 70K hours , Without Driver
Touch Screen：Without
Application： Industrial Application,
Signal Interface： LVDS (1 ch, 6/8-bit), 20 pins , Connector
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: -30 ~ 80 °C ;Storage Temp.: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s2)
